PCD/PCBN Inserts Vacuum Brazing Machine 20KW 380v Water Cooling

Name: PCDPCBN Inserts Vacuum Brazing Machine 20KW 380v Water Cooling
Brand: CTSTC
Price: 1 USD

Quality PCD/PCBN Inserts Vacuum Brazing Machine 20KW 380v Water Cooling wholesale

Brand Name : CTSTC

Model Number : ZT-ZKHJ180E

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 30 sets/month

Delivery Time : 15-30 days

Packaging Details : 1020*680*1130mm

Product name : ZT-ZKHJ180E Vacuum Brazing Machine

Application : PCD/PCBN inserts brazing

CNC or not : CNC

Certificate : CE

Chilling : Water cooling

Size : 1020*680*1130

After-sales service : Engineers can go abroad to service

Power : 380v- 3 phases-5 wires 50Hz

Max temperature : 950°C

Contact Now

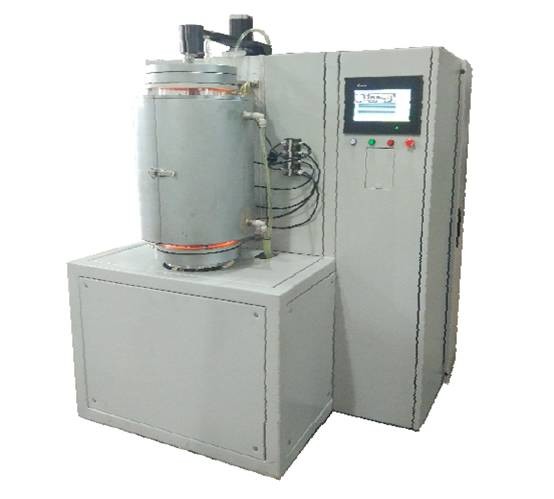

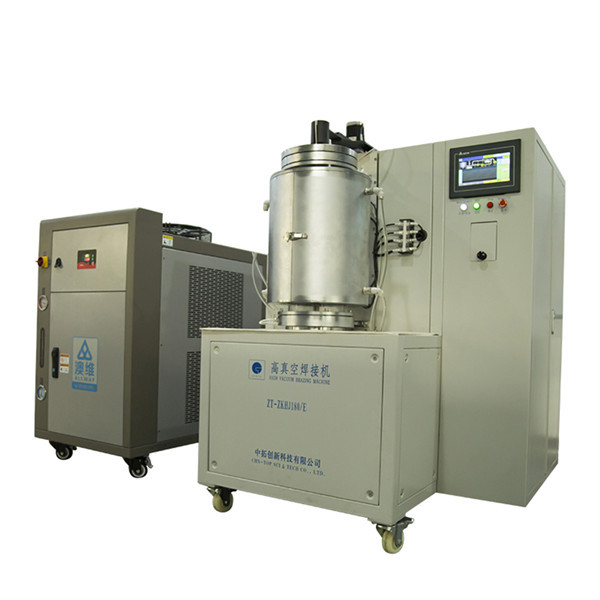

ZT-ZKHJ180E Vacuum Brazing Machine

Technology Parameters
Dimensions	10206801130mm (LWH)
Power Supply	380V-3Phases-5Wires 50Hz
Chamber	Quartz Glass Tube
Rated Power	20KW
Chamber Size	φ1805004 (T)mm
Max Temperature	950°
Max Vacuum Rate	10-6 Torr (10-4 Pa)
Brazing Vacuum Rate	10-5 Torr (10-3 Pa)
Heating Source	18 pcs halogen tubes
Chilling	Water cooling
Vacuum Process	Cleaning Fixing Flux Drying :200℃ 30mins Brazing

Based on market competition and diversified needs of customers, our company developed and produced ZT-ZKHJ180E vacuum brazing machine, which adopts diffusion pump for high vacuum system, simplified structure, automatic control.

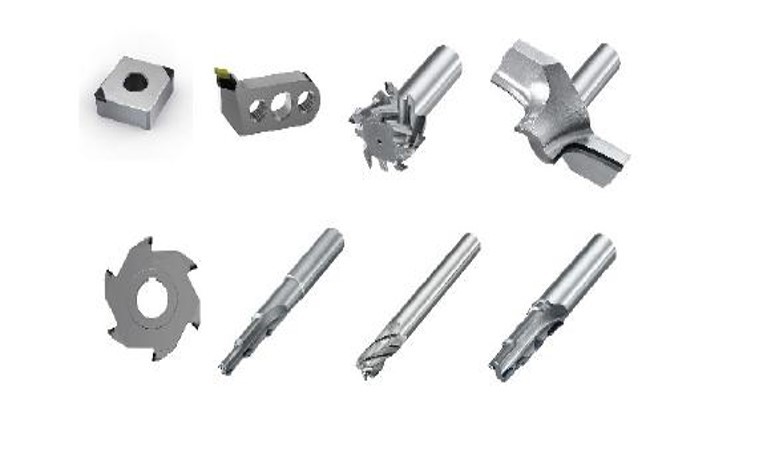

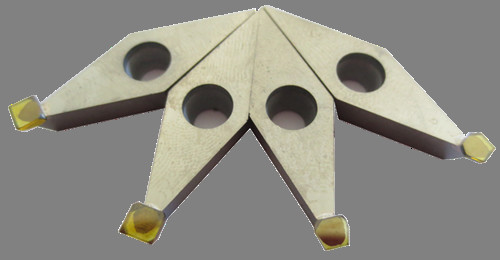

Materials: Natural Diamond, Mono Crystal Diamond, PCD, PCBN, CVD and Cermet.

Substrate Materials: Cermet, Tungsten Carbide, Steel, Stainless Steel, Steel Alloy, Ceramics, etc.

PCD/PCBN Inserts Vacuum Brazing Machine 20KW 380v Water Cooling

Design Features:

• PLC control, SCR heating, touch panel, automatic running after simple setting.

• Low vacuum mechanical pump and high vacuum diffusion pump.

• No oxidation, clean surface and environment-friendly.

• Brazing strength is 2 times higher than induction welding.

• The machine is fully automatic and once loaded, the cycle time is approximately

70-120 minutes.

• Brazing quantity is more than 500 pcs (CNGA1204), reduces total cost.

• Reduction of distortion, even a very small tool insert can be brazed.

• Larger chamber can be customized.
